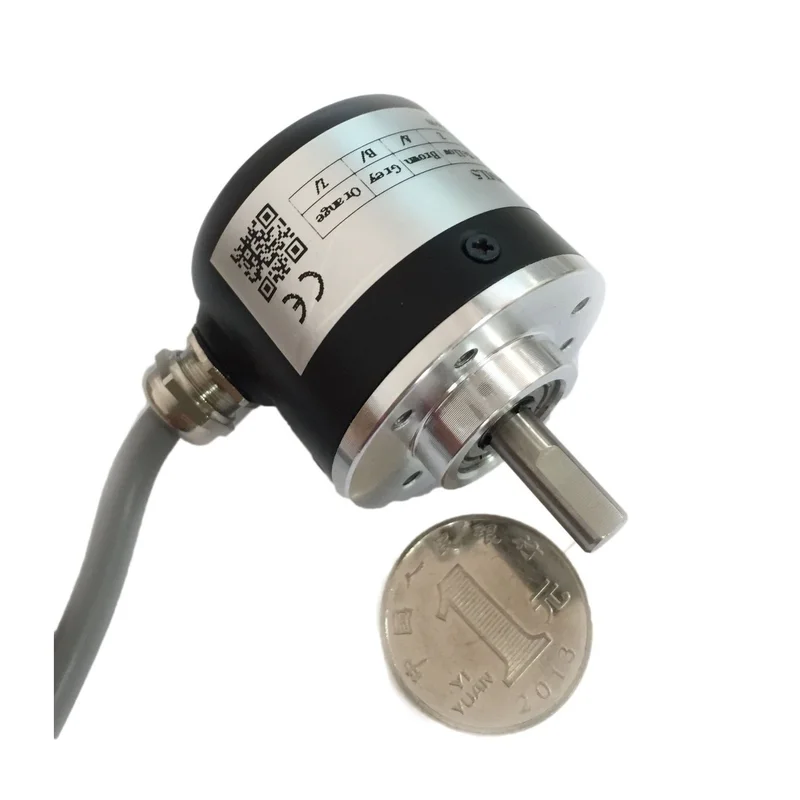

38mm Shell Diameter 6mm Solid Shaft Rotary Encoder 3600PPR Push-Pull Output 5-26V Power Supply-Fast Shipping

Description

Package Included1PCS GHS38 Solid Shaft Incremental rotary encoder

Specifications3600P/R Resolution, Push-Pull output with ABZ signals, DC 5V-26V power supply. Encoder size Ø38mm x 38mm/1.49″ x 1.49″; Shaft size 6mm x 12.5mm/0.23″ x 0.49″. Net Weight 100g/0.22 pounds. Work Temperature -30~85ºC

Product materialStainless steel shaft has a higher stability and protection. Aluminum alloy shell

FeaturesGood reliability, long life and anti-jamming performance

ApplicationWidely used in automatic control, automatic measurement, as the angle and speed sensors
