Description

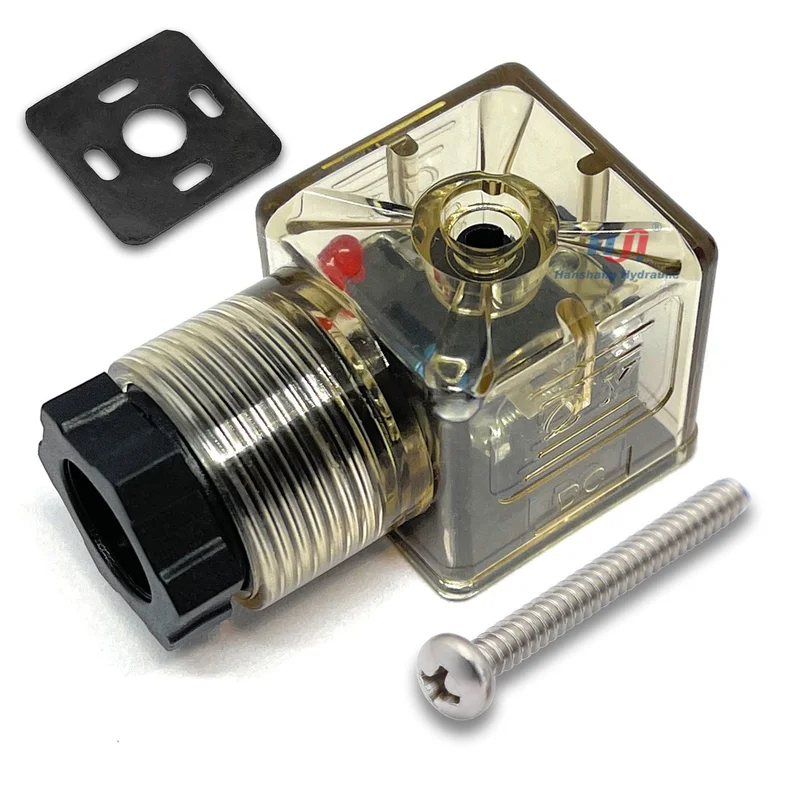

Used for All 3-Prong DIN Solenoid Valve Coil Connectors
Built-in LED indicator light to Lit If DIN Connector Is Active
12v Connector and 24v Connector, Compatible with Both 12V and 24V Solenoid Valve Coils
Pin form: 2 + 1 GND, Wiring Tunnel Diameter: 8.48mm ( 0.334″ ), Pin Spacing: 18mm ( 0.709″ )
Degree of protection: IP65 (under normal installation of IEC 60529)
Working voltage: AC250V DC300v, Rated current: 10A
1 M3-28 Mounting Screw, 1 Gasket, 1 Washer Included
